The History of Steam Locomotives
The invention of the steam locomotive was pivotal in British history. Before railways were introduced, the only methods of transportation for heavy goods were via horse and cart on poorly maintained roads or on waterways. Transport was slow, and large loads were impossible to move. At the time of the Industrial Revolution, it became crucial to transport large quantities of raw materials to factories. Often, industries were built on rivers, and an extensive new canal network was created to make the movement of goods easier. But canals were hugely expensive to construct, and extremely slow – a barge could only move as fast as the horse pulling it. And there remained the problem of how to transport finished materials and goods after processing in the factories…
In 1803, Robert Trevithick built the first high-pressure steam locomotive to run on rails, and in 1848, George Stephenson, along with other engineers, developed the first railway system in the world. Advancements in steam locomotive transport came thick and fast in the 1800s. The Stockton and Darlington railway opened in 1825, becoming the first public railway to carry both passengers and freight, and in 1829, the famous Rainhill trials began to select locomotives for the Liverpool and Manchester Railway. By 1845, a staggering 2,440 miles of rail network was open and carrying 30 million passengers.
Steam power fuelled the Industrial Revolution, propelling tonnes of heavy raw materials, fuel, and finished goods to all corners of the nation quickly and efficiently.
High-Pressure Steam Engines
Early steam engines, like Thomas Newcomen’s atmospheric engine, developed in 1704, were a significant step forward in steam transport but lacked power and efficiency. Trevithick’s invention of a high-pressure engine became pivotal in locomotive transport. The new engine used the force produced by steam pressure to push a piston back and forth inside a cylinder, creating rotational energy. This engine was smaller, lighter, and faster, creating a boom in rail travel.
Cast Iron in the Steam Locomotive Industry

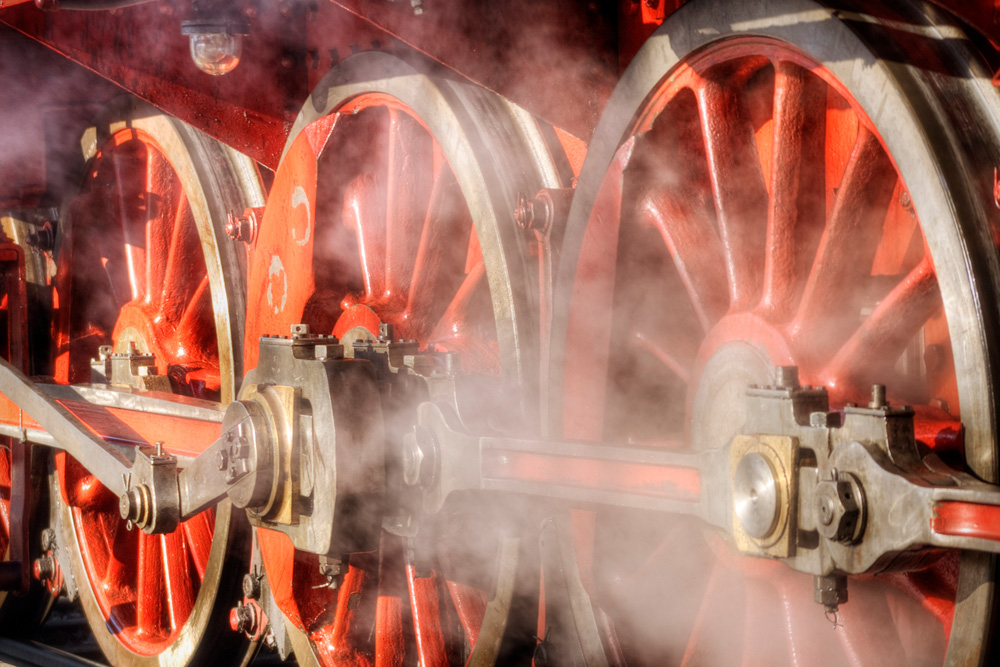

The valuable properties of cast iron have meant that it has been used extensively in the construction of steam locomotives over the years, particularly components like cylinders, pistons, and wheel centres. It is relatively low-cost, able to withstand extreme temperatures and pressures, and extremely castable.
Cast Iron Engine Components

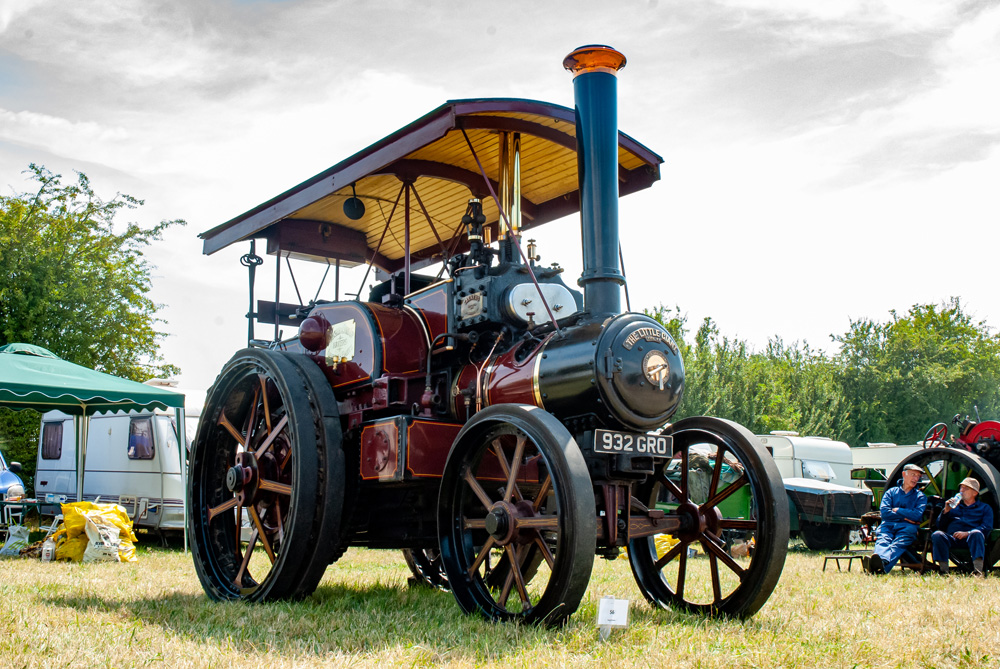

Several key components in a steam locomotive or traction engine are made from cast iron. These include parts subject to extremely high temperatures and requiring substantial strength and durability.
- The cylinder block is the main housing for the cylinders where the pistons move up and down. It also houses the crankshaft and other vital parts. It is a critical structural component that must withstand high pressure, high temperature and excessive vibration.
- A locomotive cylinder head sits at the top of the cylinder block. It contains valves and other components and forms the upper part of the combustion chamber.
- The valve chest, or steam chest, is the chamber that distributes steam to and from the cylinder via valves.
- The locomotive piston is a sliding component that moves back and forth within the cylinder. It converts the force of the expanding steam into mechanical motion.
- A connecting rod converts the linear motion of the piston into rotational motion to turn the wheels.
- Valves and other components are also often made from cast iron.
Move to Steel
While cast iron met most steam locomotive requirements, its major drawback was its low tensile strength and susceptibility to cracking. Gradually, cast iron was replaced by steel for many high-stress components, although cast iron is still used in heritage and restoration projects. In modern railway applications, cast iron remains in use for railway bridges and infrastructure.
Heritage Restoration at Cast Iron Welding Services

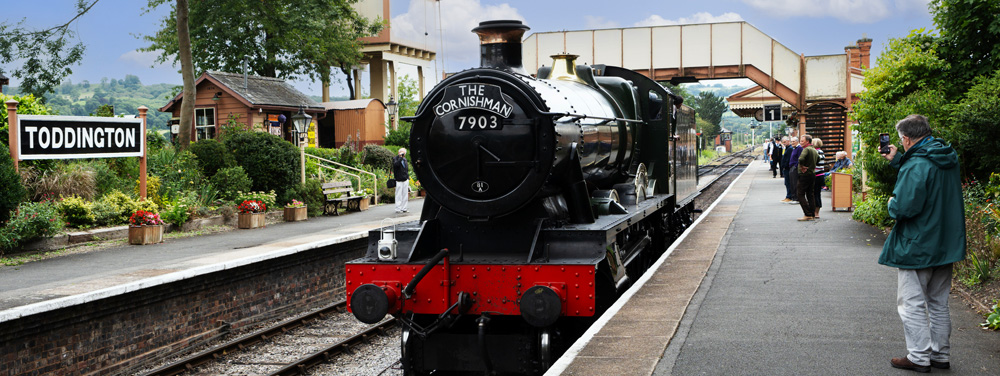

Although steam trains are no longer used commercially, the steam locomotive industry remains buoyant in tourism and as a heritage attraction, drawing thousands of enthusiasts and day trippers to events every year. Many heritage railways, like the Severn Valley Railway, are in operation across the country and most have raised funding through a combination of grants and charitable donations. Many of us appreciate the timeless appeal of a steam railway journey, and efforts to restore historic lines have been hugely successful.
Heritage restoration is close to the heart of those at Cast Iron Welding Services. The team feels privileged to contribute to the preservation of heritage steam locomotives and their historic stations. Our perfection of the unique gas fusion welding process over the last 70 years means our technicians can address deteriorating steam locomotive cast iron components and repair them effectively, paying close attention to detail to fully represent times gone by.
